(2C77) THIS LEVEL 2 AC CHARGER IS RECOMMENDED FOR MODEL e. IT WAS HAND PICKED BY THE FORD MODEL e TEAM AND MEETS ALL REQUIREMENTS FOR THE LEVEL 2 CHARGERS. INCLUDE WITH THE CHARGER HARDWARE IS A 5 YEARS ACCESS TO THE FORD CHARGING SOFTWARE AND 5 YEARS OF FORD PROTECT COVERAGE, NOT FOUND WITH OTHER CHARGERS.
CSA CERTIFIED
- BlueOval Charge Network (BOCN)
- Ford Branded
- RFID
- 80A output
- 19.2kW
Includes the Following:
- L2 Charging Station
- 5 years of Ford Protect coverage for parts and labor
- 5 years of pre-paid software access
Details:
- Cellular (Standard, Pre-Configured) & Wi-Fi capable
- Status LEDs indicate charger readiness, status and faults
- Standard 25 ft. charging cable
- Modular and scalable site configurations
- Wall- or post-mounted
- Supports over the air (OTA) software updates for continuous improvement
Specifications:
|
Port per Station |
1 |
|
Charger Type |
AC J1772 |
|
Input Voltage (V) |
208 V / 240 V AC |
|
Max Output Current |
80A |
|
Max Output Power (240V) |
19.2 kW |
|
Max Output Power (208V) |
16.6 kW |
|
Connector |
J1772 Type 1 |
|
Cable Length |
25 ft. |
|
Network |
OCPP 1.6 |
NOTES:
- 30-DAY PARTS ACCOUNT BILLING ONLY
- NO ROTUNDA FINANCING AVAILABLE
- EXCLUDES FREIGHT AND INSTALLATION
- PRICE SUBJECT TO CHANGE
- MAINTENANCE INCLUDED EXCEPT FOR ALBERTA WICH HAS A 3-YEAR BASE WARRANTY
PLEASE BE ADVISED THAT ALL LEVEL 2 AC CHARGING STATIONS 80A W/ RFID + OLED HAVE BEEN SOLD OUT FOR 2023. IN THE FIRST QUARTER OF 2024 IT IS ANTICIPATED THAT ADDITIONAL UNITS WILL BE AVAILABLE. PLEASE CONTACT US FOR AVAILABILITY AND PRICING.
CALL 1-800-ROTUNDA (1-800-768-8632 option 3 or 4) TO PRE-ORDER
Toggle Nav
Français

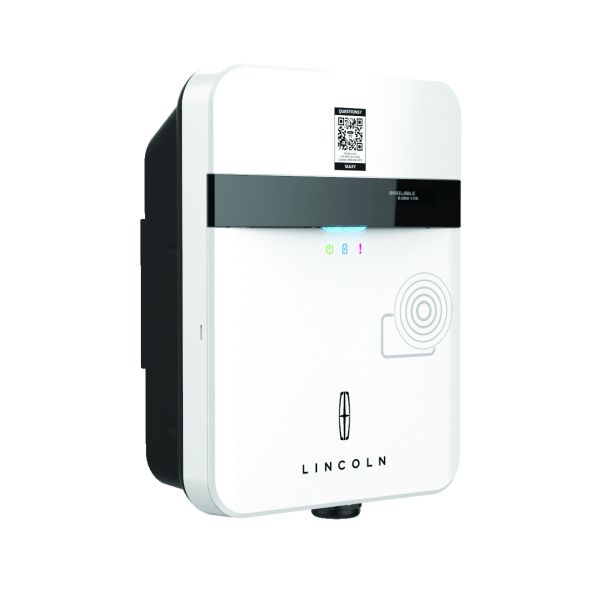

LINCOLN AC CHARGING STATION 80A W/RFID+OLED
